TurboFoam System TFC116

$4,220.77$6,240.32

  The TurboFoam is a direct injection foam proportioning system designed around an electric foam concentrate pump. It is available in several models that offer multiple sized pumps, a wide range of foam proportioning capabilities, and a variety of program options.

Clear selection

Description

  tfc100_product_image

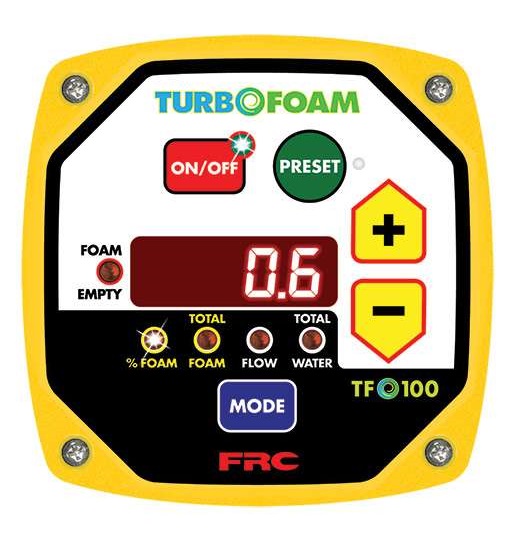

TURBOFOAM w/Single Tank LED Display

The TurboFoam TFC100 is an automatic regulating direct injection foam proportioning system. It is for use with Class A or Class B foam concenterates. The system features an electric pump that injects foam concentrate directly into the discharge water stream. The TurboFoam TFC100 is for use with a single foam tank. A single 4-digit display and four LED indicators provide system information to the operator. A mode button is used to toggle the display to view foam percent, water flow, or flow totaling.

Basic System

The basic system includes a control module, the foam concentrate pump, a flow sensor, and miscellaneous plumbing components. Refer to the TurboFoam Componentspage for more information.



STANDARD FEATURES

  • Programmable Control Module with USB Port Interface
  • Electric Triplex Plunger Type Foam Concentrate Pump
  • Check Valve Injector, Miscellaneous Check Valves and Strainers
  • Discharge Paddlewheel Flow Sensor with Multiple Mounting Options
  • Preset Button, Percent Increase/Decrease Buttons, and Digital Displays
  • Automatic Proportioning Regardless of Discharge Water Flow Fluctuations
  • Flow Totaling for Both Foam Concentrate and Discharge Water
  • Remote On/Off Switch Option.
  • Tank Empty Warning
  • Manual Mode

MODELS

TURBOFOAM   w/Single Tank LED Display

Part No               Long Description

TFC116-025        TURBOFOAM 100, 1.6 GPM, 2.5″   disch, 12 VDC

TFC116-030        TURBOFOAM 100, 1.6 GPM, 3.0″   disch, 12 VDC

TFC116-040        TURBOFOAM 100, 1.6 GPM, 4.0″   disch, 12 VDC

TFC116-050        TURBOFOAM 100, 1.6 GPM, 5.0″   disch, 12 VDC

TFC126-025        TURBOFOAM 100, 2.6 GPM, 2.5″   disch, 12 VDC

TFC126-030        TURBOFOAM 100, 2.6 GPM, 3.0″   disch, 12 VDC

TFC126-040        TURBOFOAM 100, 2.6 GPM, 4.0″   disch, 12 VDC

TFC126-050        TURBOFOAM 100, 2.6 GPM, 5.0″   disch, 12 VDC

TFC135-025        TURBOFOAM 100, 3.5 GPM, 2.5″   disch, 12 VDC

TFC135-030        TURBOFOAM 100, 3.5 GPM, 3.0″   disch, 12 VDC

TFC135-040        TURBOFOAM 100, 3.5 GPM, 4.0″   disch, 12 VDC

TFC135-050        TURBOFOAM 100, 3.5 GPM, 5.0″   disch, 12 VDC

TFC150-025        TURBOFOAM 100, 5.0 GPM, 2.5″ disch,   12 VDC

TFC150-030        TURBOFOAM 100, 5.0 GPM, 3.0″   disch, 12 VDC

TFC150-040        TURBOFOAM 100, 5.0 GPM, 4.0″   disch, 12 VDC

TFC150-050        TURBOFOAM 100, 5.0 GPM, 5.0″   disch, 12 VDC

TFC162-025        TURBOFOAM 100, 6.0 GPM, 2.5″   disch, 12 VDC

TFC162-030        TURBOFOAM 100, 6.0 GPM, 3.0″   disch, 12 VDC

TFC162-040        TURBOFOAM 100, 6.0 GPM, 4.0″   disch, 12 VDC

TFC162-050        TURBOFOAM 100, 6.0 GPM, 5.0″ disch,   12 VDC



TURBOFOAM   Options

TFCoption-AB1          Manual ABF Selector, TFC200

TFCoption-AL1          Flow sensor mount, alum boss,   option

TFCoption-AL2           Flow sensor mount, alum boss flow   cond.

TFCoption-EF0           Electric Flush Valve/Panel Button,   TFC100/200

TFCoption-FL1           Check Valve, 1″, TFC100/200

TFCoption-FM1-1.5    Discharge Check Valve Assembly, 1.5″   disch

TFCoption-FM1-2.0    Discharge Check Valve Assembly, 2.0″   disch

TFCoption-FM1-2.5    Discharge Check Valve Assembly, 2.5″   disch

TFCoption-FM1-3.0    Discharge Check Valve Assembly, 3.0″   disch

TFCoption-FM1-4.0    Discharge Check Valve Assembly, 4.0″   disch

TFCoption-FM2-1.5    Discharge Check Valve Assembly w/ Flow   Mnt, 1.5″ disch

TFCoption-FM2-2.0    Discharge   Check Valve Assembly w/ Flow Mnt, 2.0″ disch

TFCoption-FM2-2.5    Discharge Check Valve Assembly w/ Flow   Mnt, 2.5″ disch

TFCoption-FM2-3.0    Discharge Check Valve Assembly w/ Flow   Mnt, 3.0″ disch

TFCoption-FM2-4.0    Discharge Check Valve Assembly w/ Flow   Mnt, 4.0″ disch

TFCoption-FS2            Tank Float Switch, Side Mnt

TFCoption-FW0          Check Valve & Strainer, Flush   Line, 1/2″, TFC100/200

TFCoption-NW1         Flow sensor mount, no-weld

TFCoption-NW2         Flow sensor mount, no-weld kit, flow   cond.

TFCoption-PT1           Flow sensor mount, pipe tee

TFCoption-PT2           Flow sensor mount, pipe tee, flow   cond.

TFCoption-RS0          TURBOFOAM, Remote ON/OFF switch

TFCoption-SC1          Flow sensor mount, saddle clamp,   standard

TFCoption-SC2          Flow sensor mount, saddle clamp,   flow cond.

TFCoption-SS1           Flow sensor mount, SS boss

TFCoption-SS2           Flow sensor mount, SS boss, flow   cond.

TFCoption-ST1          Flow sensor mount, steel boss

TFCoption-ST2          Flow sensor mount, steel boss, flow   cond.

Options listed may not   be available for all models.



Additional information

Weight 75 lbs
